KT63 stainless steel electric contact pressure gauge   KT64 stainless steel remote pressure gauge

> Application Range

■ Industrial process control and management

■ Monitor the operation of the equipment and the circuit

■ Suitable for corrosive gases and liquid media with low viscosity and not easy to crystallize, as well as some corrosive environments

■ Chemical industry, petrochemical industry, power plant, mining, environmental technology, construction machinery and general equipment construction

■ It is used to measure the pressure of corrosive, non-viscous and non-crystalline gases and liquid media, and is also suitable for some corrosive environments.

> Product Features

Type KT63

■ Up to 4 switching electrical contacts per meter

■ Liquid-filled housing, suitable for high dynamic pressure loads and high vibration environments

■ Induction type electric contact instrument, can be used in dangerous areas

■ Electronic instrument with electrical contact, suitable for PLC applications

Type KT64

■ Capture and display process values

■ Transfer process values to the control room

■ Local analog display, easy to read and without external power supply

 > Product Type

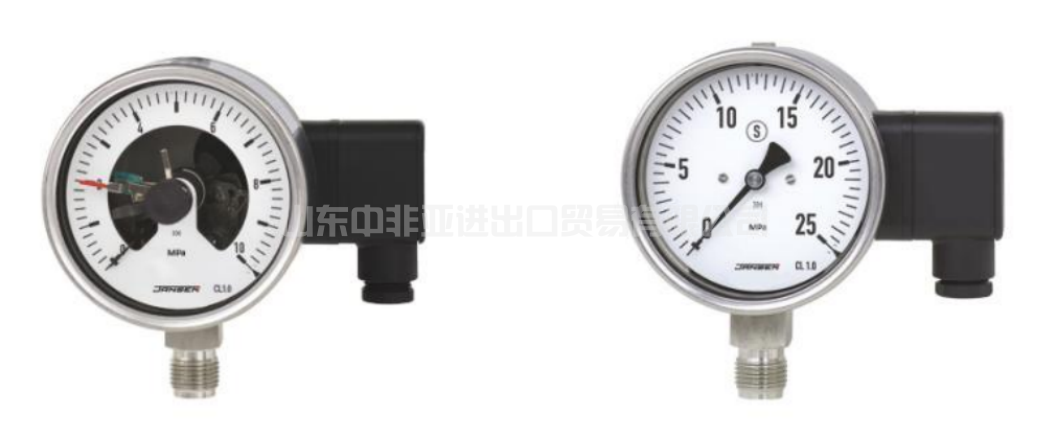

■KT63 stainless steel electric contact pressure gauge    ■KT64 stainless steel remote pressure gauge

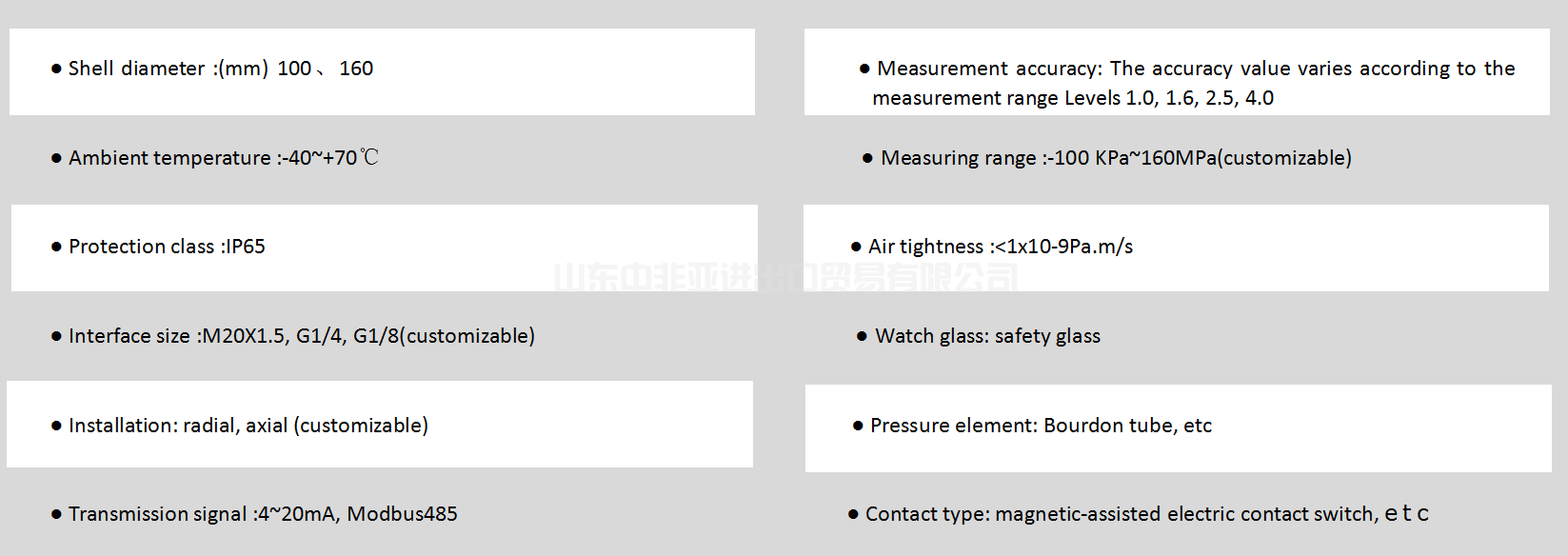

> Product parameters

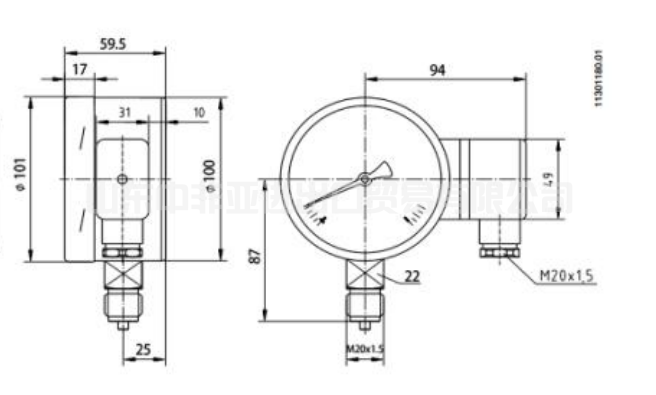

> Structure Specification

Note: This picture shows the KT63 type 100 reference size          Note: This picture shows the KT64 type 100 reference size
