> Application Range

■ Continuously monitor the gas status parameters in the closed air chamber

■ Suitable for indoor and outdoor SF6 gas insulation equipment

■ Measure the density of alternative gases in electrical equipment or laboratories

> Product Features

■ High precision sensor technology

■ Output Modbus®RTU digital signal or 4... 20mA analog signal

■ IP67 protection class, IP6k9k field housing is available

■ It has long-term stability and excellent electromagnetic compatibility.

■ Compact design

> Applicable to the following gases

■ SF62 2 02 2 He Ar Metal junction box cable outlet can be selected to connect metal cable outlet, shielding sleeve (high load version) gas

Bulk mixtures and components can be individually configured and combined in the production plant. The calculation method is based on the principle of partial pressure. After leaving the factory, the gas mixes

The compound cannot be altered

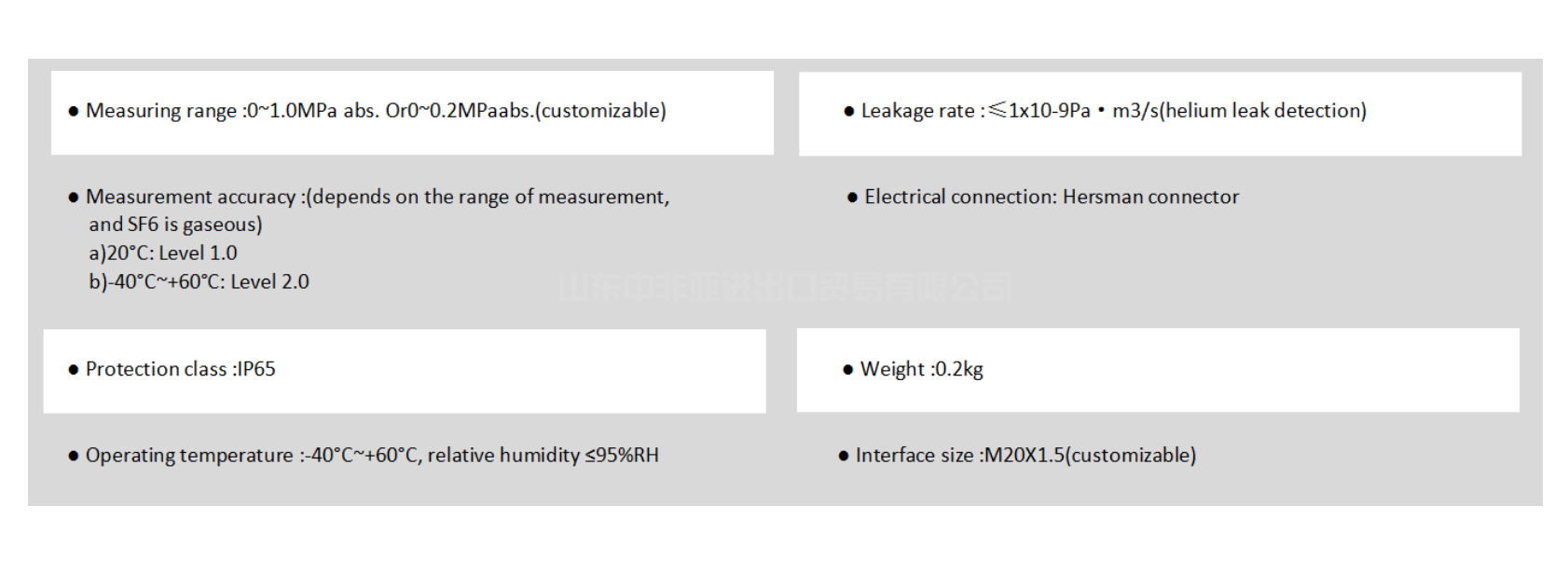

> Product parameter

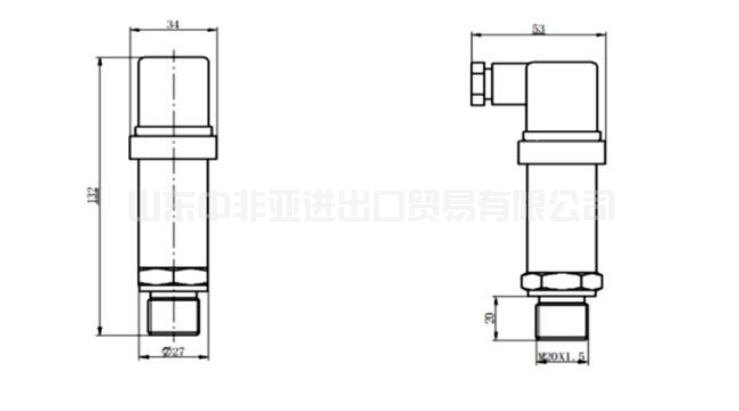

>Structural specification
